Introduction

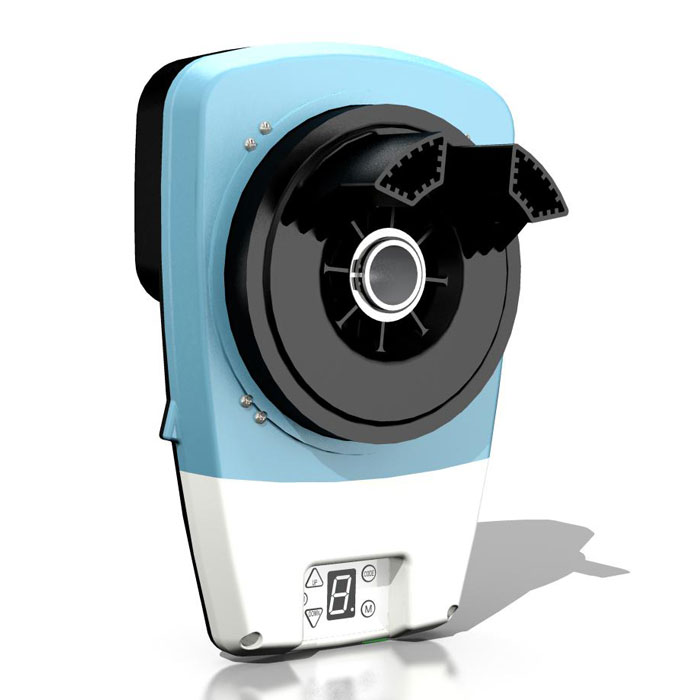

The MR350/MR400/MR450 series roll-up door motors are the upscale choice for your roller doors. Its advanced electronic limit system design makes the operation even more simple and convenient, also the fashionable appearance design is being favored by more and more people.

What’s the Advantage

Technical Data

Optional Parts

SAFETY OBSTRUCTION REVERS: The door will reverse to full open when it is overload during closing. The safety reverse force can be adjusted to suit the door and reduce the possibility of damaging property in the event of impact. Can use photo beam(optional) to make safety protection.
3 Minutes LED Courtesy Light: LEDs provide a modern appearance with no need to replace blown globes. The light can also be activated independently via remote.
Soft start, soft stop: The opener starts and ends the door’s travel cycle gently to reduce wear and extend the life of the opener and door.
Auto-close function (require photo beam): The door can automatically close after a pre-programmed 3 minutes.
Battery Backup: For convenience and peace of mind, with an optional backup battery you can still use your automatic opener during a power failure or low voltage.
Half-open: After programmed, the door can be set to open 30cm, 60cm or 90cm when pressing the S1 key on the remote.

Model	MR350	MR400	MR450
Output Torque	55NM	70NM	90NM
Opening Speed	17CM-20CM/S	17CM-20CM/S	19CM-22CM/S
Rated Lifting Weight (after balanced by the springs)	35KGS(350N)	40KGS(400N)	45KGS(450N)
Power Supply	220V AC / 50Hz
Motor Type	24V DC permanent magnet
General working time	≤60s
Limit Device	Electronic Limit
Working Temperature	-20℃ - +50℃
Transmitter Frequency	433.92MHz
Standard Transmitter Quantity	2 pcs
Coding Type	Rolling code
Coding Combination	Over 4.29 billion

Remote Control

This simple little device while only part of your garage door opener is essential since it is what allows you to stay in your vehicle and out of the cold, rain and other nasty weather until you get into your garage where it is warm and dry. Garage door remotes come in many different sizes and shapes...

Remote Control

Keypad

This is a dual channel transmitter that can be activated only after having entered a suitable password. The units are designed for installation to indoor or outdoor locations. The estimated transmission range is 200 m in open space and 35 m indoors. ...

Keypad

Wireless Wall Switch

The same working way like the remote control. It needs to be installed inside the door. Simple coding, simple operation, just need a light tough to the button, then everything is under control....

Wireless Wall Switch

Single wired Wall Switch

Simple O/S/C control can be carried out by this small wall switch. It needs to be installed inside the door....

Single wired Wall Switch

External Receiver

An amazing small device enables you to match 30-300 different remote controls to your door opener just by a simple coding procedure, even if the remote controls are from different suppliers....

External Receiver

Infrared Sensor

Walking/driving through a moving door is so dangerous! Using Infrared Sensor can keep you always safe even though the door is closing when you are under the door. The door will automatically reverse immediately when the Infrared Sensor detect something within the door way....

Infrared Sensor

Caution Light

Stay near a moving door may cause personal injury. Using a Caution Light will completely avoid this potential dangerous! The Caution Light will flash/flash and beeping as a warning when the door is opening or closing....

Caution Light

Battery Back-up

Power off occasionally or frequently is an annoying thing. Using a battery back-up will keep you calm when power off. You can still open/close your door automatically by the door opener....

Battery Back-up

Emergency Lock

When you back to home driving a car and find the power is off, while the garage door is locked, it can ‘t be opened by remote control, by wall switch or by hand, it is really a bad thing! We suggest fixing an emergency lock on your door. Then you could twist the key and just pull out the lock cylind...

Emergency Lock
